Wesure Support Columns
Load Specifications
|
LIGHT / MEDIUM DUTY MINI SERIES |
||||||||||
| Series |
Maximum |
Allowable |
Limit States |
Column / |
Head Dimensions |
Lateral Loading |
Label |
|||
|
Feet |
Meters |
Lbs |
kN |
Lbs |
kN |
Dimensions |
In Matched Sets | |||
|
8'-0" 8'-6" 9’-0” |
2.44 2.59 2.74 |
10,500 10,000 9,600 |
46.6 44.5 42.7 |
15,200 14,500 13,920 |
67.6 64.5 61.8 |
2.5” x 2.5” Base 6" x 6" |
Top 3.5” x 5.25” LVL |
800 / 1200 |
Magenta |
|
|
7'-6" 8'-0" 8'-6" 9’-0” 9’-6” 10’-0” |
2.29 2.44 2.59 2.74 2.90 3.05 |
14,000 13,000 12,000 11,000 10,100 9,375 |
62.5 57.7 53.0 48.9 44.9 41.7 |
20,400 18,800 17,300 15,950 14,645 13,600 |
90.7 83.6 76.9 71.0 65.1 60.5 |
2.5” x 2.5” Base 6" x 6" |
Top 3.5” x 5.25” LVL |
800 / 1200 |
Yellow |
|
|
7’-6” 8’-0” 8’-6” 9’-0” 9’-6” 10’-0” |
2.29 2.44 2.59 2.74 2.90 3.05 |
16,000 15,500 14,000 13,000 12,000 11,500 |
71.1 68.9 62.3 57.8 53.4 51.2 |
23,200 22,475 20,300 18,850 17,400 16,675 |
103.2 100.0 90.3 83.9 77.4 74.2 |
2.5” x 2.5” Base 6" x 6" |
Top 3.5” x 5.25” LVL |
800 / 1200 |
Black |
|
|
7’-6” 8’-0” 8’-6” 9’-0” 9’-6” 10’-0” 11’-0” 12’-0” |
2.29 2.44 2.59 2.74 2.90 3.05 3.35 3.65 |
25,500 24,000 22,000 20,500 19,500 18,000 15,800 13,675 |
113.4 106.8 97.9 91.2 86.7 80.1 72.3 60.8 |
37,000 34,800 32,000 29,800 28,300 26,100 22,900 19,840 |
164.6 154.8 142.4 132.6 125.9 116.1 101.8 88.3 |
3” x 3” Base 6" x 6" |
Top 6” x 7” LVL |
1275 / 1900 |
Lime Green |
|
|
8'-0" 9'-0" 10'-0" 11'-0" 12'-0" |
2.44 2.74 3.05 3.35 3.65 |
36,000 30,000 25,000 21,000 17,500 |
160.0 133.4 111.2 93.4 77.8 |
52,000 43,000 36,250 30,400 25,350 |
231.3 191.3 161.2 135.2 103.9 |
3” x 3” Base 6" x 6" |
Top 6” x 8” LVL |
1600 / 2320 |
Purple |
|
|
MEDIUM DUTY SADDLE SERIES |
||||||||||
| Series |
Maximum |
Allowable |
Limit States |
Column / |
Saddle Head Dimensions |
Lateral Loading |
Label |
|||
|
Feet |
Meters |
Lbs |
kN |
Lbs |
kN |
Dimensions |
In Matched Sets | |||
|
7’-5.5” 8’-5.5” 9’-5.5” 10’-5.5” |
2.27 2.58 2.88 3.19 |
18,500 16,000 13,500 11,500 |
82.3 71.2 60.1 51.2 |
26,825 23,200 19,575 16,675 |
119.3 103.2 87.1 74.2 |
2.5” x 2.5” Base 6” x 6” 4 x 0.625” Ø for anchor bolts 1” in |
2 Ply LVL 6” x 3.625” x 7.5” 3 Ply LVL 6” x 5.375” x 6.1875” 4 Ply DIM 6” x 6.25” x 6.125” Flat Top 4” x 6” |
925 / 1385 |
Light Blue |
|
|
8’-5.5” 9’-5.5” 10’-5.5” 12’-5.5” |
2.58 2.88 3.19 3.79 |
24,000 20,500 18,000 13,750 |
106.8 91.2 80.1 61.2 |
34,800 29,725 26,100 19,950 |
154.8 132.2 116.1 88.8 |
3” x 3” Base 8” x 8” 4 x 0.625” Ø for anchor bolts 1” in |
2 Ply LVL 8” x 3.625” x 7.5” 3 Ply LVL 8” x 5.375” x 6.625” 4 Ply DIM 8” x 6.25” x 6.125” 4 Ply LVL 8” x 7.375” x 5.625” Flat Top 6” x 8” |
1200 / 1800 |
Orange |
|
|
8’-5.5” 9’-5.5” 10’-5.5” 12’-5.5” 14’-5.5” |
2.58 2.88 3.19 3.79 4.40 |
34,000 29,000 25,000 19,000 14,750 |
151.3 129.0 111.2 84.5 65.6 |
49,300 42,000 36,250 27,550 21,390 |
219.3 186.8 161.3 122.6 95.0 |
3” x 3” Base 8” x 8” 4 x 0.625” Ø for anchor bolts 1” in |
2 Ply LVL 8” x 3.625” x 7.5” 3 Ply LVL 8” x 5.375” x 6.625” 4 Ply DIM 8” x 6.25” x 6.125” 4 Ply LVL 8” x 7.375” x 5.625” Flat Top 6” x 8” |
1700 / 2550 |
Blue Grey |
|
|
HEAVY / SUPER DUTY SADDLE SERIES |
||||||||||
| Series |
Maximum |
Allowable |
Limit States |
Column / |
Saddle Head Dimensions |
Lateral Loading |
Label |
|||
|
Feet |
Meters |
Lbs |
kN |
Lbs |
kN |
Dimensions |
In Matched Sets | |||
|
8’-5.5” 9’-5.5” 10’-5.5” 12’-5.5” 14’-5.5” 16’-5.5” |
2.58 2.88 3.19 3.79 4.40 5.02 |
41,000 35,500 30,500 23,000 18,000 14,000 |
182.4 157.9 135.7 102.3 80.1 62.3 |
59,450 51,475 44,225 33,350 26,100 20,300 |
264.5 229.0 196.7 148.4 116.1 90.3 |
3” x 3” Base 8” x 8” 4 x 0.625” Ø for anchor bolts 1” in |
2 Ply LVL 13” x 3.625” x 6” 3 Ply LVL 13” x 5.375” x 6” 4 Ply DIM 13” x 6.375” x 6” 4 Ply LVL 13” x 7.375” x 6” Flat Top 6” x 8” |
2050 / 3075 |
Dark Blue |
|
|
8’-5.5” 9’-5.5” 10’-5.5” 12’-5.5” 14’-5.5” 16’-5.5” 20’-5.5” 24’-5.5” |
2.58 2.88 3.19 3.79 4.40 5.02 6.24 7.45 |
61,000 55,500 50,000 40,500 33,000 27,000 18,500 13,500 |
271.4 246.9 222.4 180.2 146.8 120.1 82.3 60.1 |
88,450 80,500 72,500 58,750 47,850 39,150 26,825 19,575 |
393.5 358.1 322.5 261.3 212.9 174.2 119.3 87.1 |
4” x 4” Base 8” x 8” 4 x 0.625” Ø for anchor bolts 1” in |
2 Ply LV 13” x 3.625” x 6” 3 Ply LVL 13” x 5.375” x 6” 4 Ply DIM 13” x 6.375” x 6” 4 Ply LVL 13” x 7.375” x 6” Flat Top 8” x 10” |
3050 / 4575 |
Red |
|
|
8’-5.5” 12’-5.5” 16’-5.5” 20’-5.5” 24’-5.5” |
2.58 3.79 5.02 6.24 7.45 |
90,000 67,500 48,500 35,000 26,000 |
400.4 300.3 215.7 155.7 115.7 |
130,500 97,875 70,325 50,750 37,700 |
580.5 435.4 312.8 225.8 167.7 |
5” x 5” Base 10” x 10” 4 x 0.625” Ø for anchor bolts 1” in |
2 Ply LVL 13” x 3.625” x 6” 3 Ply LVL 13” x 5.375” x 6” 4 Ply DIM 13” x 6.375” x 6” 4 Ply LVL 13” x 7.375” x 6” 5 Ply LVL 13” x 9” x 6” Flat Top As Required |
4500 / 6750 |
Brown |
|
|
8’-5.5” 12’-5.5” 16’-5.5” 20’-5.5” 24’-5.5” |
2.58 3.79 5.02 6.24 7.45 |
150,000 124,500 95,000 72,000 55,000 |
667.3 553.8 422.6 320.3 244.7 |
217,500 180,525 137,750 104,400 79,750 |
967.5 803.0 612.8 464.4 354.8 |
6” x 6” Base 10” x 10” 4 x 0.625” Ø for anchor bolts 1” in |
2 Ply LVL 20” x 3.625” x 10” 3 Ply LVL 20” x 5.375” x 10” 4 Ply DIM 20” x 6.375” x 10” 4 Ply LVL 20” x 7.375” x 10” 5 Ply LVL 20” x 9” x 10” Flat Top As Required |
7500 / 11,250 |
Purple |
|

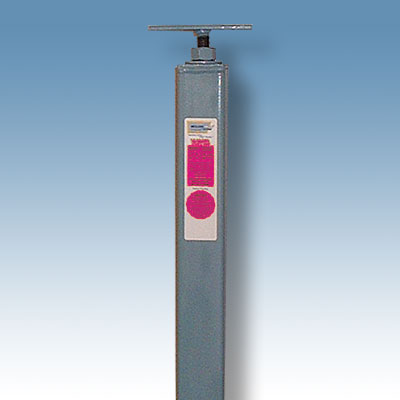

| WMNA | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-0" 8'-6" 9'-0" |
2.44 2.59 2.74 |
10,500 10,000 9,600 |
46.6 44.5 42.7 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-0" 8'-6" 9'-0" |
2.44 2.59 2.74 |
15,200 14,500 13,920 |
67.6 64.5 61.8 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 2.5" x 2.5" | 6" x 6" | Top 3.5" x 5.25" (LVL) | |
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Magenta | |
| 800 | 1,200 | ||

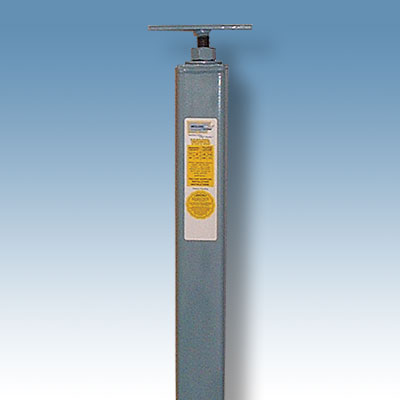

| WMB | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
7'-6" 8'-0" 8'-6" 9'-0" 9'-6" 10'-0" |
2.29 2.44 2.59 2.74 2.90 3.05 |
14,000 13,000 12,000 11,000 10,100 9,375 |
62.5 57.7 53.0 48.9 44.9 41.7 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
7'-6" 8'-0" 8'-6" 9'-0" 9'-6" 10'-0" |
2.29 2.44 2.59 2.74 2.90 3.05 |
20,400 18,800 17,300 15,950 14,645 13,600 |
90.7 83.6 76.9 71.0 65.1 60.5 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 2.5" x 2.5" | 6" x 6" | Top 3.5" x 5.25" (LVL) | |
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Yellow | |
| 800 | 1,200 | ||

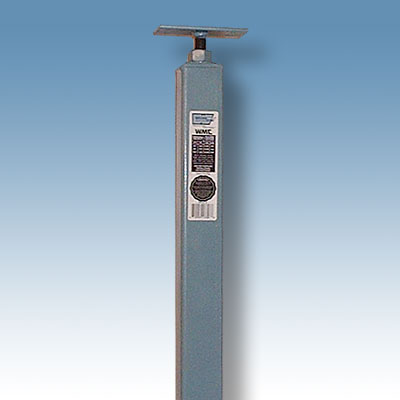

| WMC | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
7'-6" 8'-0" 8'-6" 9'-0" 9'-6" 10'-0" |
2.29 2.44 2.59 2.74 2.90 3.05 |
16,000 15,500 14,000 13,000 12,000 11,500 |
71.1 68.9 62.3 57.8 53.4 51.2 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
7'-6" 8'-0" 8'-6" 9'-0" 9'-6" 10'-0" |
2.29 2.44 2.59 2.74 2.90 3.05 |
23,200 22,475 20,300 18,850 17,400 16,675 |
103.2 100.0 90.3 83.9 77.4 74.2 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 2.5" x 2.5" | 6" x 6" | Top 3.5" x 5.25" (LVL) | |
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Black | |
| 800 | 1,200 | ||

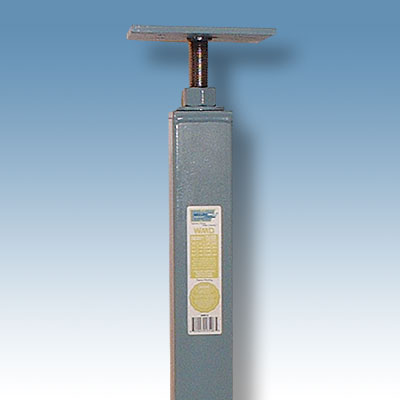

| WMD | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
7'-6" 8'-0" 8'-6" 9'-0" 9'-6" 10'-0" 11'-0" 12'-0" |
2.29 2.44 2.59 2.74 2.90 3.05 3.35 3.65 |
25,500 24,000 22,000 20,500 19,500 18,000 15,800 13,675 |
113.4 106.8 97.9 91.2 86.7 80.1 72.3 60.8 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
7'-6" 8'-0" 8'-6" 9'-0" 9'-6" 10'-0" 11'-0" 12'-0" |
2.29 2.44 2.59 2.74 2.90 3.05 3.35 3.65 |
37,000 34,800 32,000 29,800 28,300 26,100 22,900 19,840 |
164.6 154.8 142.4 132.6 125.9 116.1 101.8 88.3 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 3" x 3" | 6" x 6" | Top 6" x 7" (LVL) | |
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Lime Green | |
| 1,275 | 1,900 | ||

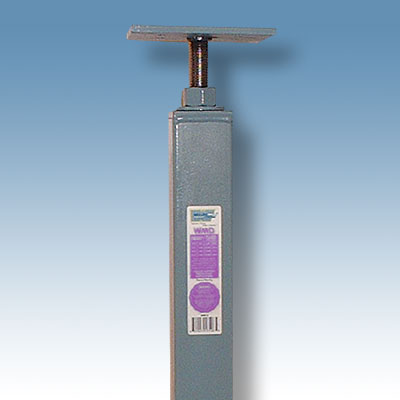

| WME | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-0" 9'-0" 10'-0" 11'-0" 12'-0" |
2.44 2.74 3.05 3.35 3.65 |
36,000 30,000 25,000 21,000 17,500 |
160.0 133.4 111.2 93.4 77.8 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-0" 9'-0" 10'-0" 11'-0" 12'-0" |
2.44 2.74 3.05 3.35 3.65 |
52,000 43,000 36,250 30,400 25,350 |
231.3 191.3 161.2 135.2 103.9 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 3" x 3" | 6" x 6" | Top 6" x 8" (LVL) | |
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Purple | |
| 1600 | 2320 | ||

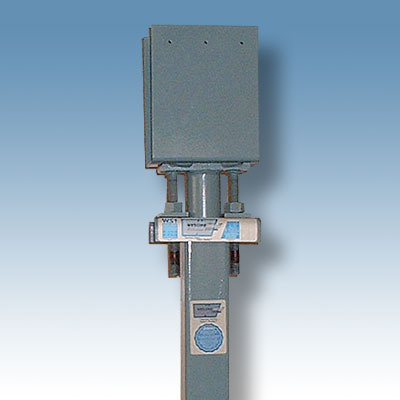

| WS1 | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
7’-5.5” 8’-5.5” 9’-5.5” 10’-5.5” |
2.27 2.58 2.88 3.19 |
18,500 16,000 13,500 11,500 |
82.3 71.2 60.1 51.2 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
7’-5.5” 8’-5.5” 9’-5.5” 10’-5.5” |
2.27 2.58 2.88 3.19 |
26,825 23,200 19,575 16,675 |
119.3 103.2 87.1 74.2 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 2.5" x 2.5" |
6" x 6" 4 x 0.625" Ø for anchor bolts 1" in |
2 Ply LVL 6" x 3.625" x 7.5" 3 Ply LVL 6" x 5.375" x 6.1875" 4 Ply DIM 6" x 6.25" x 6.125" Flat Top 4" x 6" |
|
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Light Blue | |
| 925 | 1,385 | ||

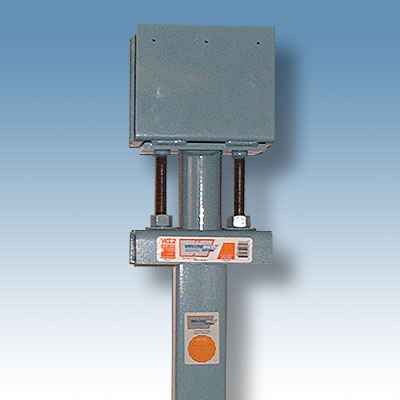

| WS2 | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 9'-5.5" 10'-5.5" 12'-5.5" |
2.58 2.88 3.19 3.79 |
24,000 20,500 18,000 13,750 |
106.8 91.2 80.1 61.2 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 9'-5.5" 10'-5.5" 12'-5.5" |
2.58 2.88 3.19 3.79 |
34,800 29,725 26,100 19,950 |
154.8 132.2 116.1 88.8 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 3" x 3" |
8" x 8" 4 x 0.625" Ø for anchor bolts 1" in |
2-Ply LVL 8" x 3.625" x 7.5" 3 Ply LVL 8" x 5.375" x 6.625" 4 Ply DIM 8" x 6.25" x 6.125" 4 Ply LVL 8" x 7.375" x 5.625" Flat Top 6" x 8" |
|
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Orange | |
| 1,200 | 1,800 | ||

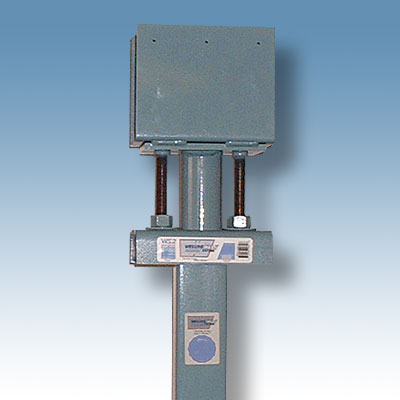

| WS2.5 | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 9'-5.5" 10'-5.5" 12'-5.5" 14'-5.5" |
2.58 2.88 3.19 3.79 4.40 |
34,000 29,000 25,000 19,000 14,750 |
151.3 129.0 111.2 84.5 65.6 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 9'-5.5" 10'-5.5" 12'-5.5" 14'-5.5" |
2.58 2.88 3.19 3.79 4.40 |
49,300 42,000 36,250 27,550 21,390 |
219.3 186.8 161.3 122.6 95.0 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 3" x 3" |
8" x 8" 4 x 0.625" Ø for anchor bolts 1" in |
2-Ply LVL 8" x 3.625" x 7.5" 3 Ply LVL 8" x 5.375" x 6.625" 4 Ply DIM 8" x 6.25" x 6.125" 4 Ply LVL 8" x 7.375" x 5.625" Flat Top 6" x 8" |
|
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Blue Grey | |
| 1,700 | 2.550 | ||

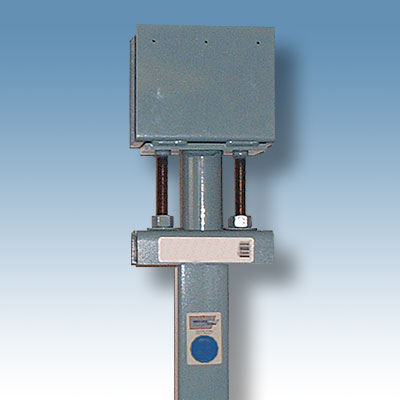

| WS3 | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 9'-5.5" 10'-5.5" 12'-5.5" 14'-5.5" 16'-5.5" |
2.58 2.88 3.19 3.79 4.40 5.02 |
41,000 35,500 30,500 23,000 18,000 14,000 |
182.4 157.9 135.7 102.3 80.1 62.3 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 9'-5.5" 10'-5.5" 12'-5.5" 14'-5.5" 16'-5.5" |
2.58 2.88 3.19 3.79 4.40 5.02 |
59,450 51,475 44,225 33,350 26,100 20,300 |
264.5 229.0 196.7 148.4 116.1 90.3 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 3" x 3" |
8" x 8" 4 x 0.625" Ø for anchor bolts 1" in |
2 Ply LVL 13" x 3.625" x 6" 3 Ply LVL 13" x 5.375" x 6" 4 Ply DIM 13" x 6.375" x 6" 4 Ply LVL 13" x 7.375" x 6" Flat Top 6" x 8" |
|
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Dark Blue | |
| 2,050 | 3,075 | ||

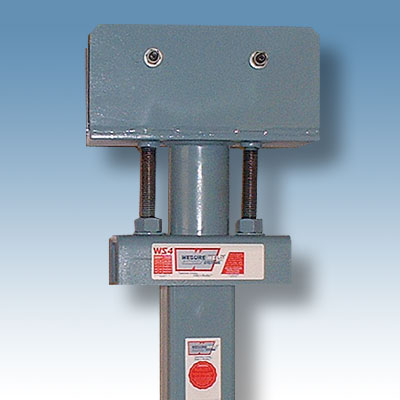

| WS4 | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 9'-5.5" 10'-5.5" 12'-5.5" 14'-5.5" 16'-5.5" 20'-5.5" 24'-5.5" |
2.58 2.88 3.19 3.79 4.40 5.02 6.24 7.45 |
61,000 55,500 50,000 40,500 33,000 27,000 18,500 13,500 |
271.4 246.9 222.4 180.2 146.8 120.1 82.3 60.1 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 9'-5.5" 10'-5.5" 12'-5.5" 14'-5.5" 16'-5.5" 20'-5.5" 24'-5.5" |
2.58 2.88 3.19 3.79 4.40 5.02 6.24 7.45 |
88,450 80,500 72,500 58,750 47,850 39,150 26,825 19,575 |
393.5 358.1 322.5 261.3 212.9 174.2 119.3 87.1 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 4" x 4" |
8" x 8" 4 x 0.625" Ø for anchor bolts 1" in |
2 Ply LV 13" x 3.625" x 6" 3 Ply LVL 13" x 5.375" x 6" 4 Ply DIM 13" x 6.375" x 6" 4 Ply LVL 13" x 7.375" x 6" Flat Top 8" x 10" |
|
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Red | |
| 3,050 | 4,575 | ||

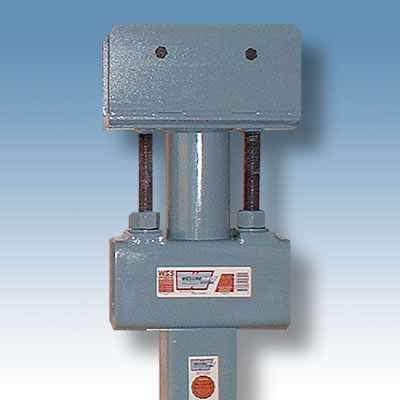

| WS5 | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 12'-5.5" 16'-5.5" 20'-5.5" 24'-5.5" |
2.58 3.79 5.02 6.24 7.45 |
90,000 67,500 48,500 35,000 26,000 |
400.4 300.3 215.7 155.7 115.7 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
|
8'-5.5" 12'-5.5" 16'-5.5" 20'-5.5" 24'-5.5" |
2.58 3.79 5.02 6.24 7.45 |
130,500 97,875 70,325 50,750 37,700 |
580.5 435.4 312.8 225.8 167.7 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 5" x 5" |
10" x 10" 4 x 0.625" Ø for anchor bolts 1" in |
2 Ply LVL 13" x 3.625" x 6" 3 Ply LVL 13" x 5.375" x 6" 4 Ply DIM 13" x 6.375" x 6" 4 Ply LVL 13" x 7.375" x 6" 5 Ply LVL 13" x 9" x 6" Flat Top As Required |
|
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Brown | |
| 4,500 | 6,750 | ||

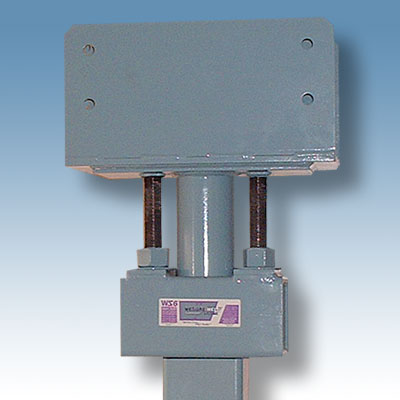

| WS6 | |||
| Max. Height | Max. Load (Unfactored) | ||
| Feet | Meters | Lbs. | kN |
8'-5.5" 12'-5.5" 16'-5.5" 20'-5.5" 24'-5.5" |
2.58 3.79 5.02 6.24 7.45 |
150,000 124,500 95,000 72,000 55,000 |
667.3 553.8 422.6 320.3 244.7 |
| Max. Height | Max. Load (Factored) | ||
| Feet | Meters | Lbs. | kN |
8'-5.5" 12'-5.5" 16'-5.5" 20'-5.5" 24'-5.5" |
2.58 3.79 5.02 6.24 7.45 |
217,500 180,525 137,750 104,400 79,750 |
967.5 803.0 612.8 464.4 354.8 |
| Dimensions | |||
| Column | Base Plate | Head Plate | |
| 6" x 6" | 10" x 10" 4 x 0.625" Ø for anchor bolts 1" in |
2 Ply LVL 20" x 3.625" x 10" 3 Ply LVL 20" x 5.375" x 10" 4 Ply DIM 20" x 6.375" x 10" 4 Ply LVL 20" x 7.375" x 10" 5 Ply LVL 20" x 9" x 10" Flat Top As Required |
|
| Lateral Load | Label Colour Code | ||
| Lbs. (Unfactored) | Lbs. (Factored) | Purple | |
| 7,500 | 11,250 | ||
